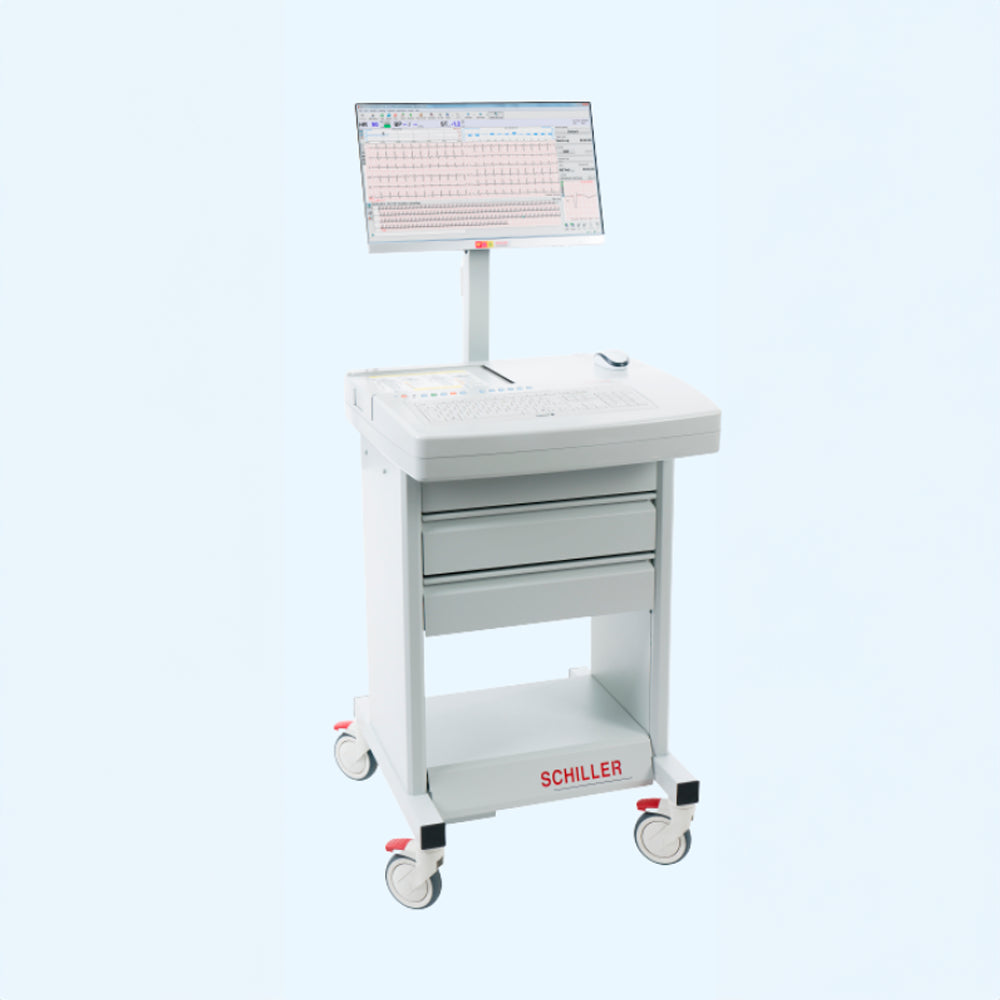

Schiller CARDIOVIT CS-200 Excellence Stress Test System: Advanced Diagnostics, Seamless Connectivity & Performance

The CARDIOVIT CS-200 Excellence is a state-of-the-art stress test system engineered for precision, convenience, and high performance in cardiac diagnostics for professionals. This advanced system is designed to enhance diagnostic accuracy and streamline workflows, incorporating the latest technology to save time and increase productivity during stress testing procedures.

Ideal for: Cardiologists, Pediatric Cardiology specialists, Research Labs, and Cardiac Rehabilitation centers, seeking a high-performance, connected, and upgradable stress test system.

Connecting your medical equipment to an Electronic Medical Record (EMR) system can improve your workflow and patient safety. Capturing, saving and storing the
studies of the patient in a fast, precise and electronic way reduces transcription errors and allows you to dedicate time to what matters most-your patients.
SCHILLER allows seamless connectivity with any Hospital Information Systems (HIS), dedicated PACS or EMR via Health Level 7 (HL7) messages or DICOM standard.

We have connectivity with most EMRs in the market.

Key Features & Benefits:

• Comprehensive Testing Capabilities: Performs Resting ECG, Resting Rhythm, and Exercise ECG.

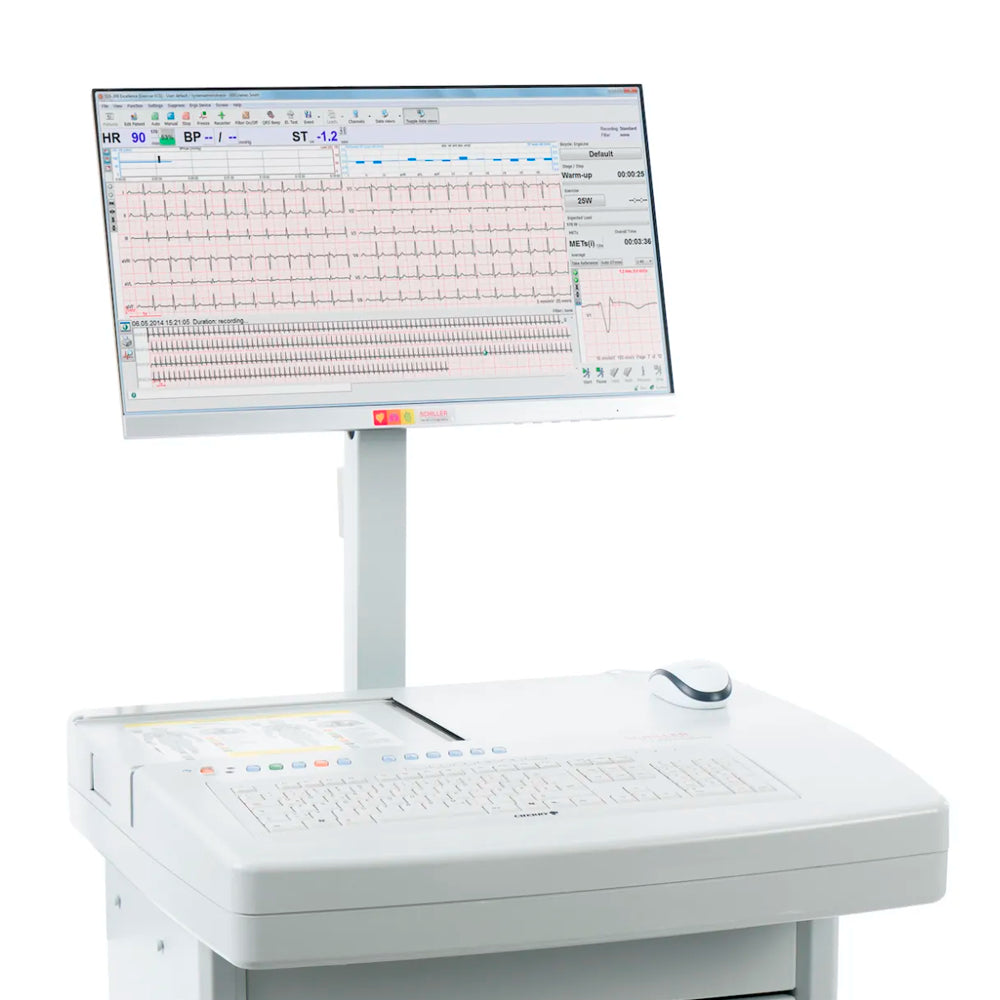

• High-Resolution Display: Features a large 24” screen and a full-size keyboard for clear visualization and easy operation.
• 12 or 16-Lead ECG: Offers both 12 and 16-lead options for thorough cardiac assessment during rest and exercise.
• Integrated Thermal Printer: Provides convenient on-site printing of test results.
• High Sampling Frequency & Storage: Captures data at 8000 Hz with ECG storage at 1000 Hz for 12/16 leads, ensuring no critical events are missed with full disclosure.
• Customizable Reporting: Allows users to tailor the final report to their specific preferences.

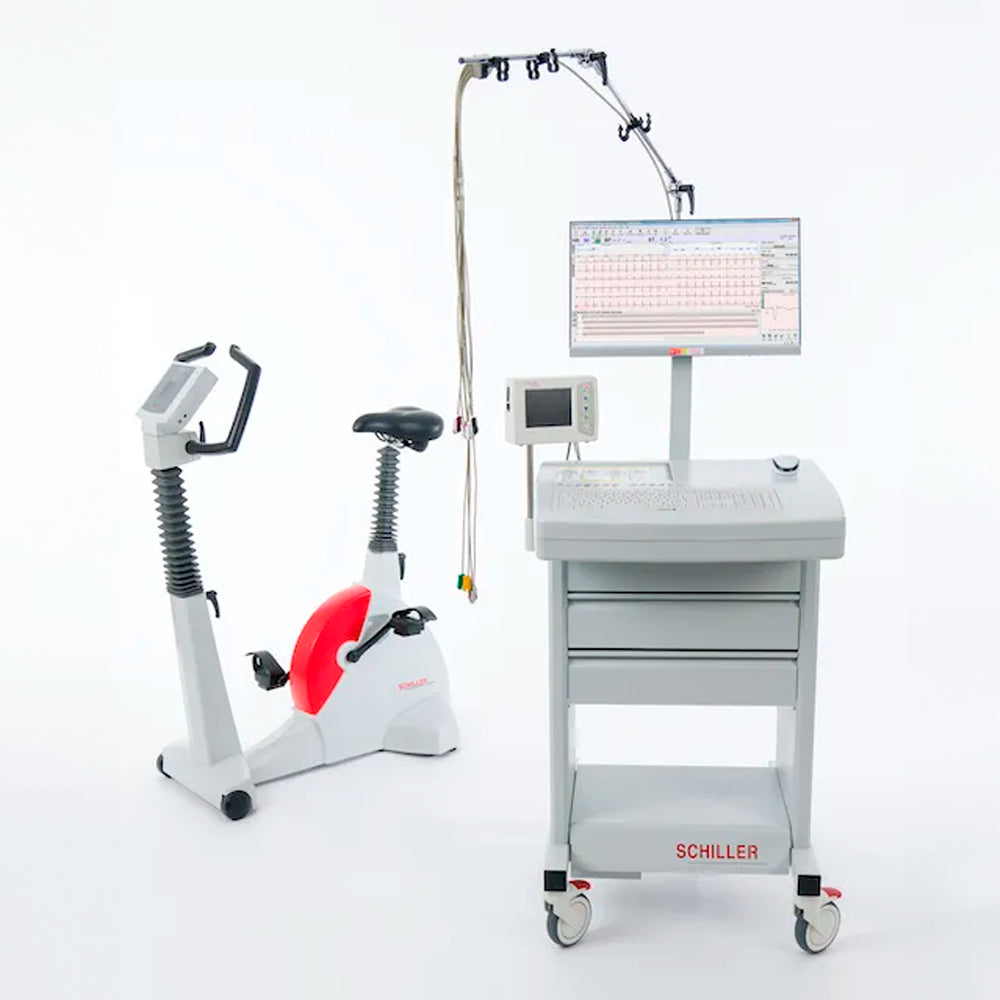

• Treadmill & Ergometer Compatibility: Works seamlessly with most treadmills and ergometers available on the market.
• Easy Patient Chart Documentation: Generates PDF Stress Test reports and offers various connectivity options for streamlined documentation.
• Field Upgradable: Options for 16-Lead ECG, SAECG (Late Potential), and Blood Pressure device can be added as needed.
• Seamless Bidirectional Connectivity: Supports a paperless workflow and saves time through Ethernet and Wi-Fi for automatic PDF transmission and EMR integration.
• DICOM & HL7 Connectivity: Enables connection to PACS systems for Worklist and Patient Information Query.
• Powerful Performance: Powered by a robust Core i7 CPU for faster and more efficient operation.
• Advanced Software: Runs on the latest V3.2 software version, introducing enhanced usability and functionality.
• Optimized Efficiency: 64-bit architecture maximizes memory usage and boosts overall system performance.
• Reliable Operating System: Based on Windows 10 for compatibility and seamless integration.

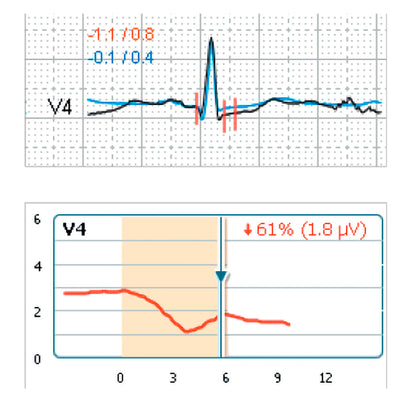

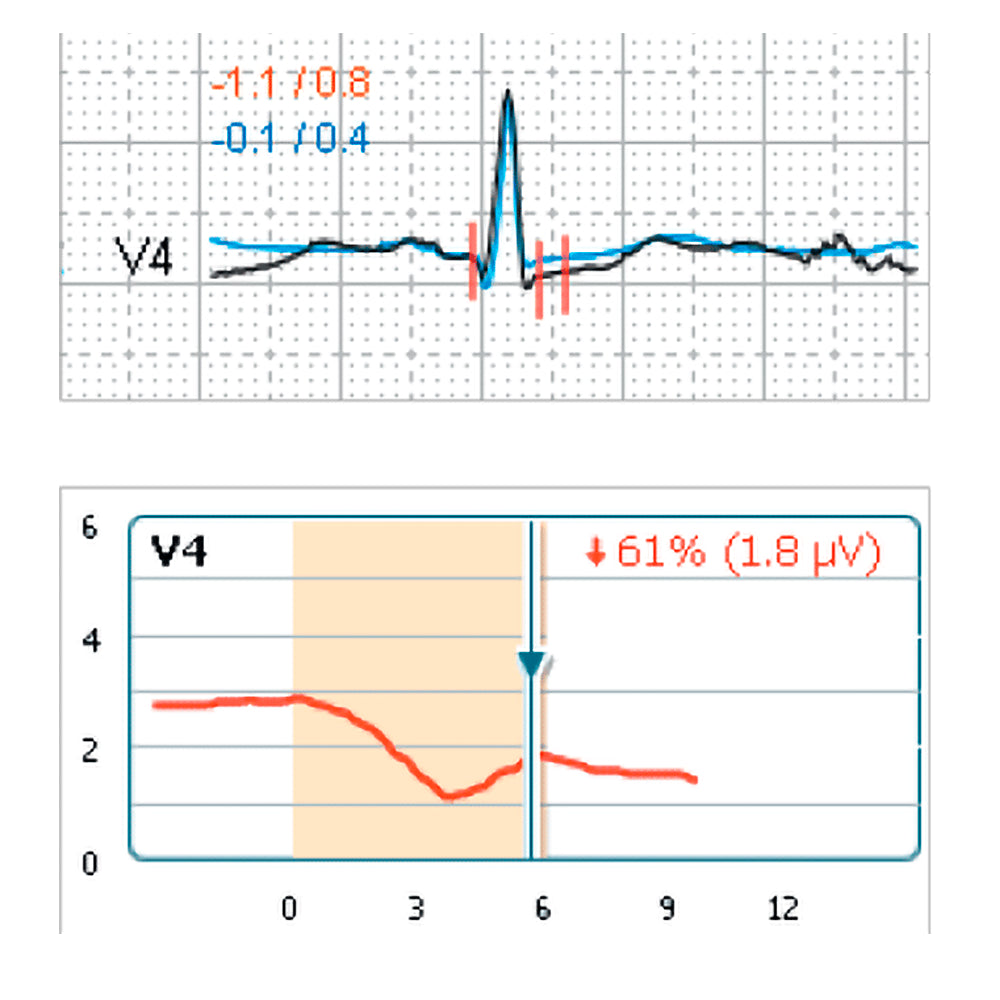

Sample Reports

Sample Report 1

Sample Report 2
